Pellet Machine
Compact Power • Industrial Performance • Engineered by Mechaniqua

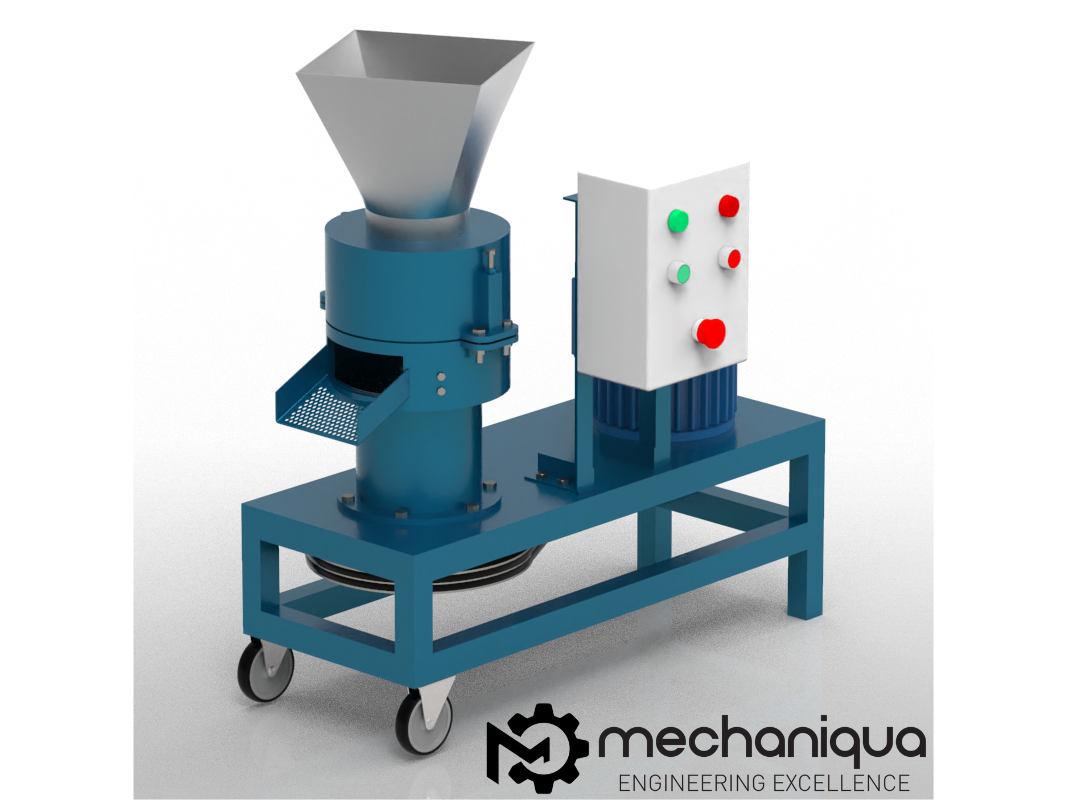

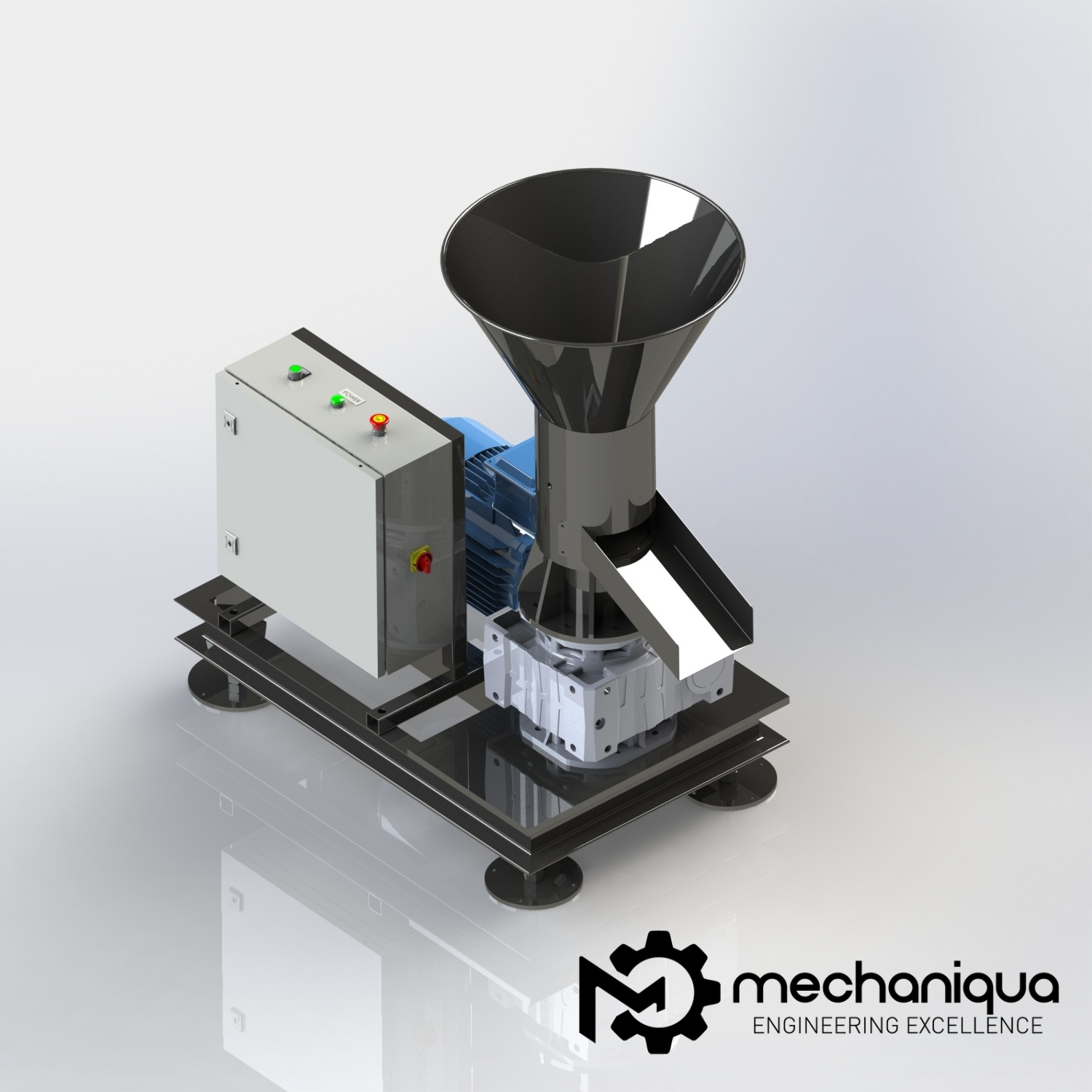

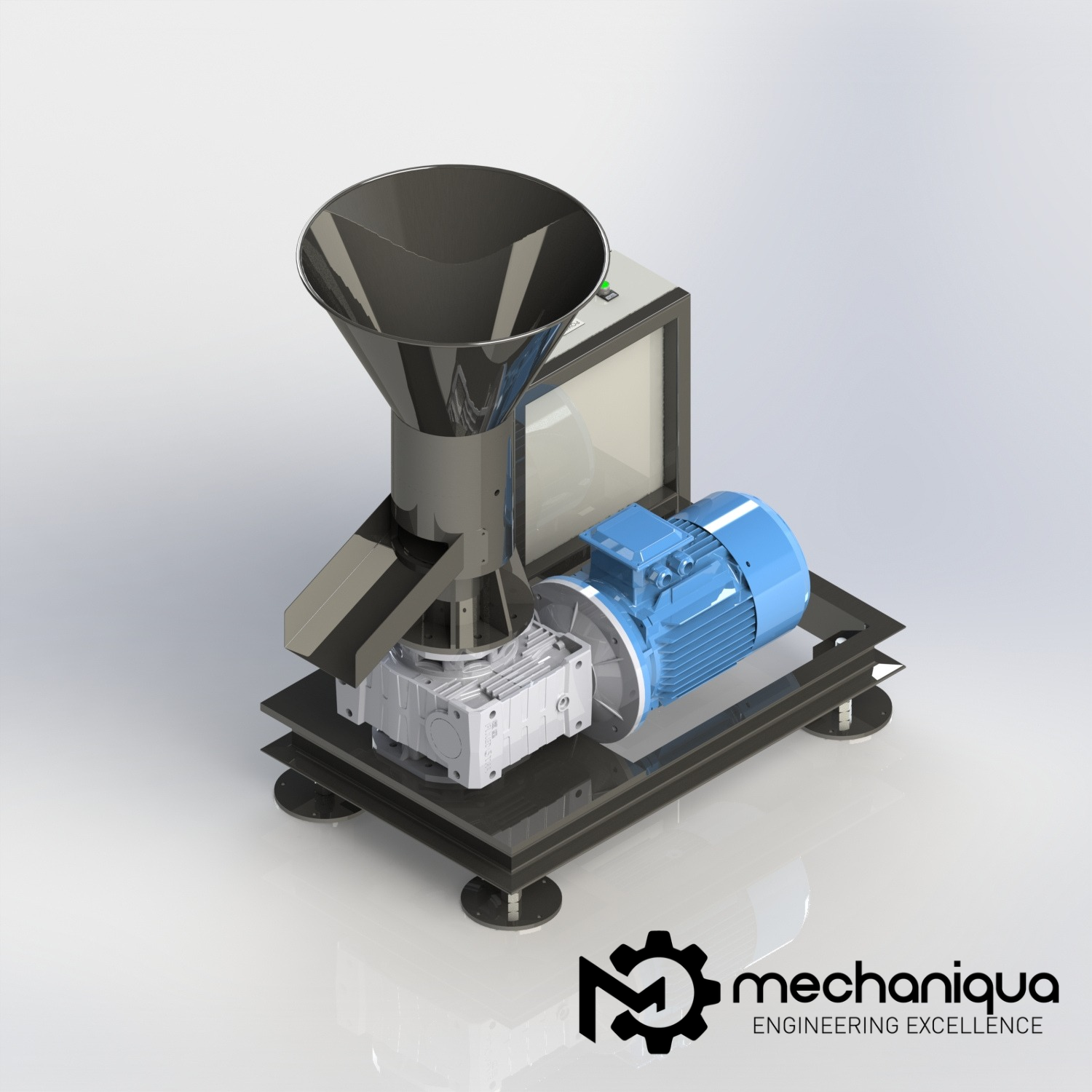

The Mechaniqua Pellet Machine is a powerful and reliable unit designed to compress raw materials like sawdust, wood chips, animal feed, or organic waste into uniform, high-density pellets. Starting from 2.2 kW, it offers the perfect balance of compact size and industrial performance for workshops, small farms, or commercial production.
Key Features

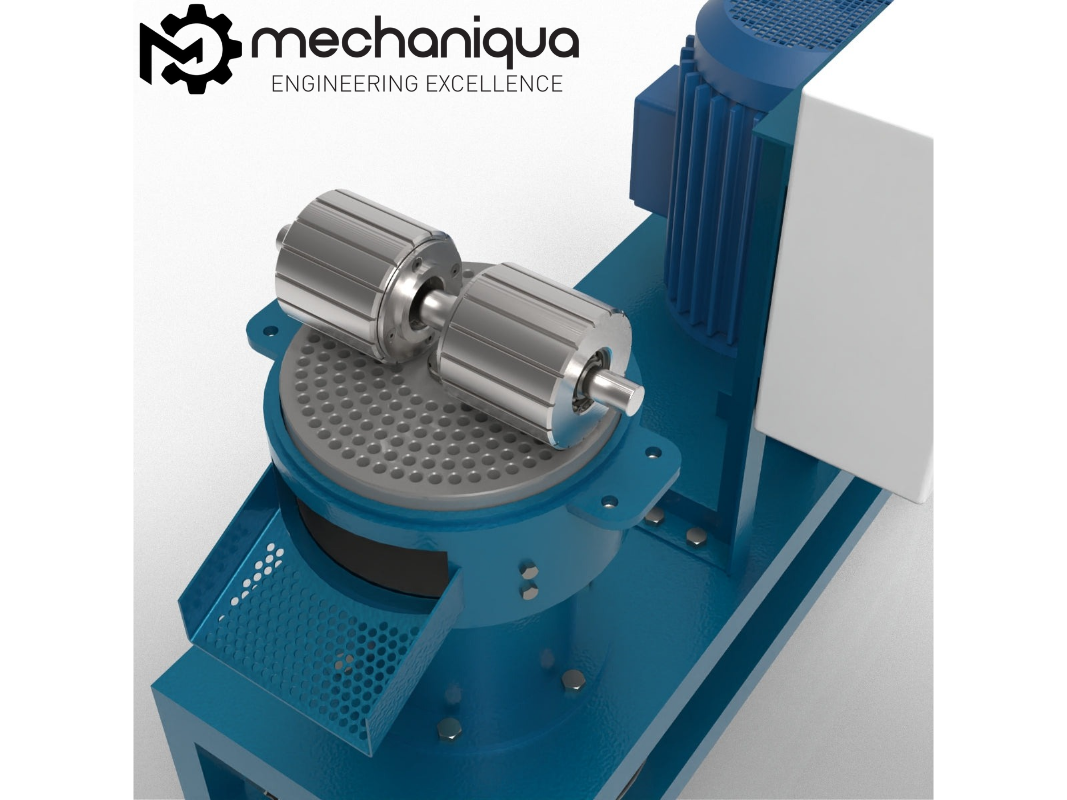

- ⚙️ High Output Efficiency: Precision-machined flat die ensures strong compression and uniform pellet density.
- 🔩 Durable Build: Heavy-duty steel frame and wear-resistant rollers built for long service life.
- 🔥 Versatile Application: Suitable for wood pellets, animal feed, and organic fertilizer production.
- ⚡ Low Power, High Return: Starting from 2.2 kW, producing up to 60 kg/h depending on material type and die size, and can produce up to 1300 kg/h with bigger models.
- 🔄 User-Friendly Design: Easy disassembly for cleaning, quick die change, and simple operation.

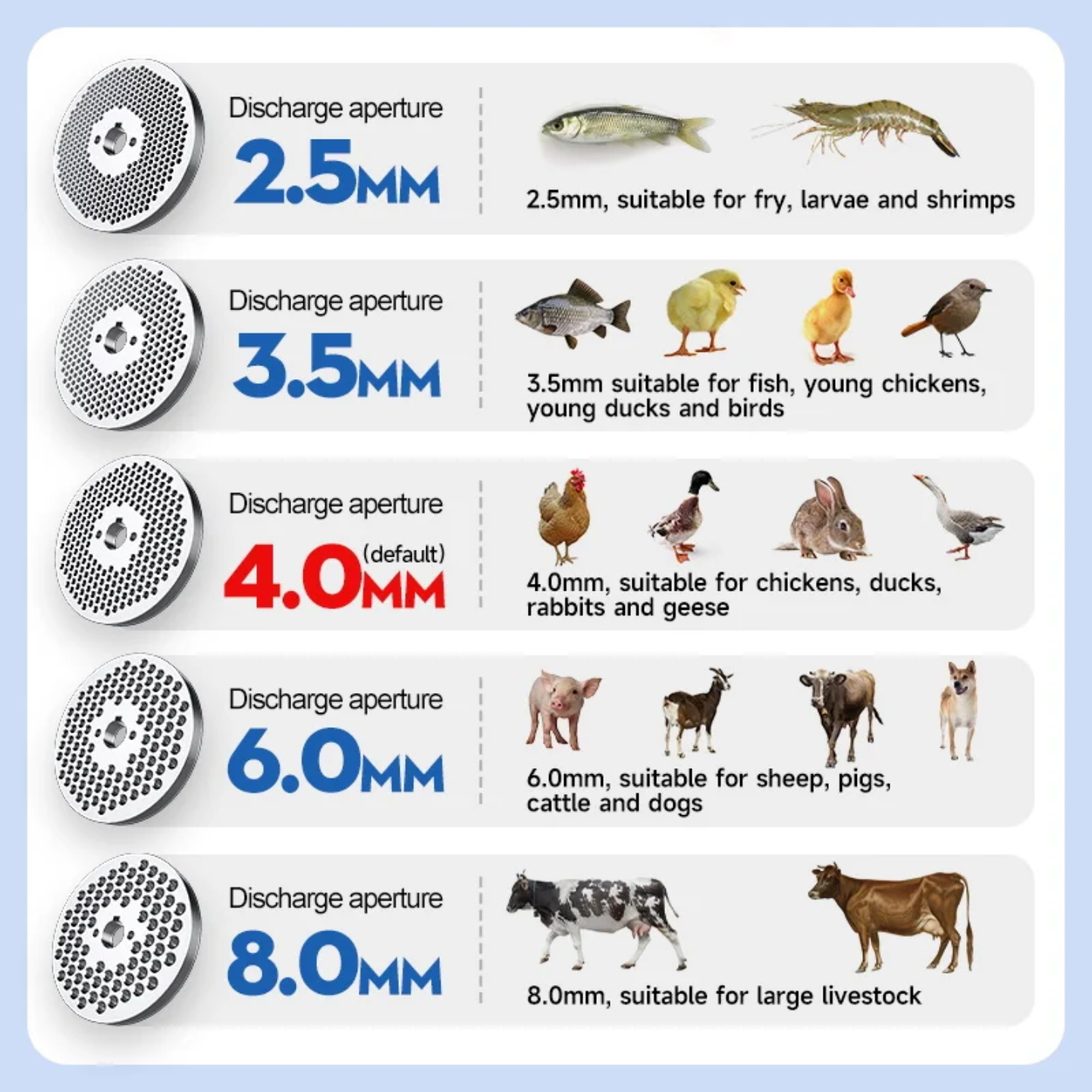

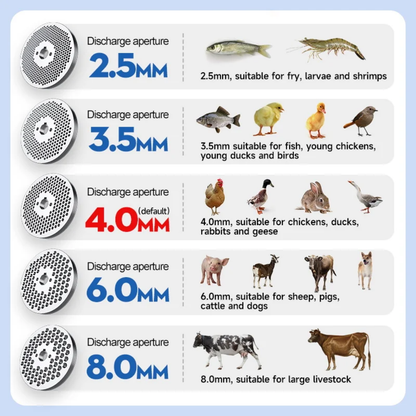

- 📏 Customizable Pellets: Interchangeable dies from 2 mm to 10 mm to match various material requirements.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Range | 2.2 – 30kW |
| Voltage | 220 V single phase / 380 V three phase |
| Capacity | 20 – 1300 kg/h (depending on power & material) |
| Pellet Diameter | 3 – 10 mm |
| Die Type | Flat die, hardened alloy steel |
| Die Diameter | 120 - 800mm |
| Feeding System | Gravity or screw feed |
| Material Moisture | 10 – 15 % for optimal results |
| Weight | 80 – 1500 kg |
| Construction | Carbon Steel |
| Lubrication | Manual or automatic greasing |
| Safety Features | Overload protection, emergency stop, guarding |
Applications
- Wood & Biomass Pellets: Sawdust, straw, rice husk, shavings.
- Animal Feed Pellets: Poultry, fish, cattle, and pet feed.
- Organic Fertilizer: Compost, manure, and other natural materials.
|
Motor Power (kW) |
Approximate Feed/Soft Biomass Capacity (kg/h) |
Approximate Hard Wood/Heavy Biomass Capacity (kg/h) |
Typical Application |
|---|---|---|---|
|
2.2 kW |
60 - 100 kg/h |
- |
Hobby, small farm (single-phase option common) |
|
4.0 kW |
90 - 120 kg/h |
20 - 60 kg/h |
Home use, small workshop |
|
7.5 kW |
200 - 300 kg/h |
60 - 100 kg/h |
Small commercial, medium farm |
|
11 kW |
300 - 400 kg/h |
100 - 150 kg/h |
Commercial, larger farm |
|
15 kW |
400 - 600 kg/h |
150 - 180 kg/h |
Light industrial, high-capacity farm |
|
22 kW |
600 - 800 kg/h |
200 - 250 kg/h |
Commercial production, medium wood shop |
|
30 kW |
1,000 - 1,300 kg/h |
300 - 350 kg/h |
Larger commercial/small industrial facility |
